What Is a Solenoid Valve?

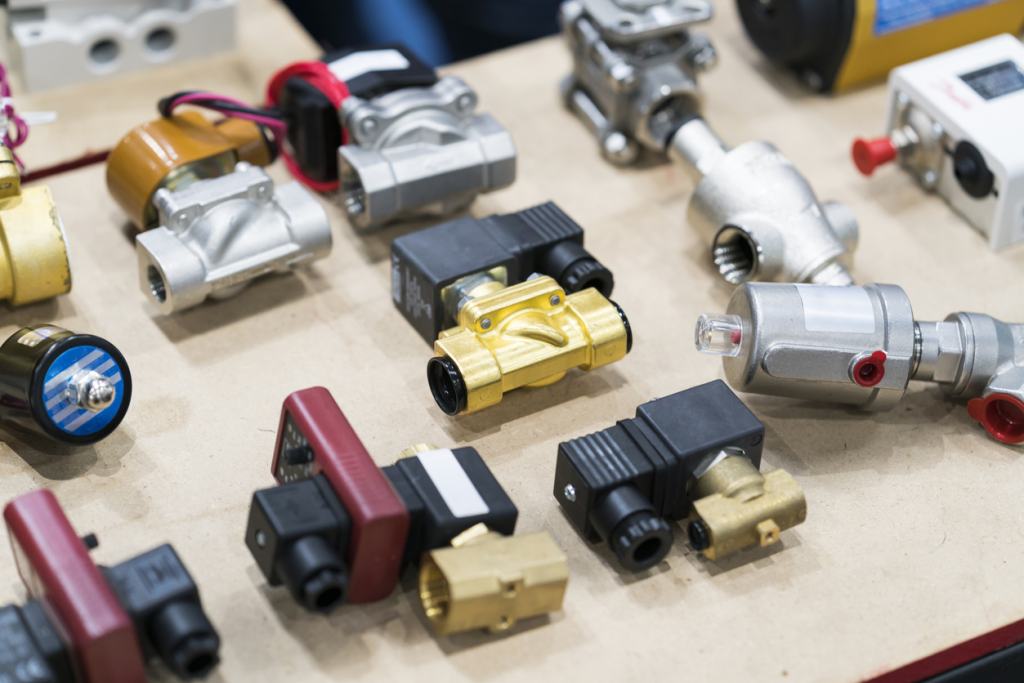

What Is a Solenoid Valve?

• A solenoid valve is a type of valve that is controlled by an electromagnetic coil. When electrical energy is applied to the coil, it generates a magnetic field, which controls the operation of the valve.

Structure:

• A solenoid valve typically consists of a magnetic core, a coil winding, a valve body, and a movable plunger or diaphragm.

Operating Principle:

• When an electrical current is applied to the coil, a magnetic field is generated around the coil. This magnetic field attracts or pushes the magnetic core or the movable plunger, causing the valve to open or close.

Applications:

• Solenoid valves are used in a wide range of industrial applications. For example, they are used to control the flow of water and gases, to regulate fuel injection systems in automotive applications, to actuate brake systems in automotive applications, and even to regulate drug delivery in medical devices.

Advantages:

• Fast response time: They can open or close rapidly when the electrical current is cut off.
• Long lifespan: They have minimal mechanical wear, resulting in a long service life.
• Easy control: They can be easily controlled with electrical signals.

Disadvantages:

• Power requirement: They require electrical energy.
• Electromagnetic interference: They emit electromagnetic fields, which can cause interference with other electronic devices.

Solenoid valves are essential components for automating the control of liquid and gas flow in various industrial processes, and they are often used in precision applications.
